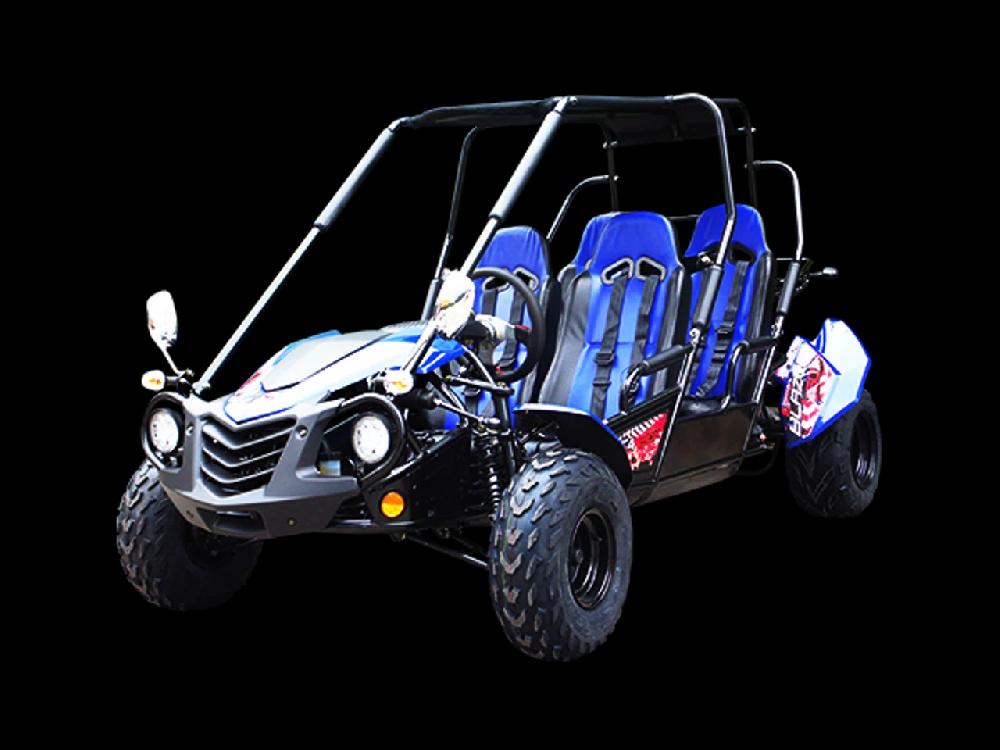

Scooter Plus 300E XRS4 NOW WITH EFI

300 XRS4

  Engine Information

  Engine type

  4-stroke, single cylinder, air cooled

  Displacement

  300cc

  Output Max.

  17.4HP/6500rpm

  Max torque

  16 lb ft/5000rpm

  Bore x stroke

  2.85 x 2.63 inches

  Max speed

  50mph

  Climbing ability

  15 degrees

  Min turning radius

  229 inches

  Ignition

  ECU

  Starting system

  Electric Start

  Battery

  12V 10Ah

  Gear oil

  MoS2&W-2WD-4D

  General Information

  Clutch

  Automatic CTV with reverse

  Driveline / Driving wheel

  Chain / Dual wheel drive

  Suspension, F / R

  Dual A-arm / swing-arm

  Brakes, F

  Hydraulic brakes, Disc

  Brakes, R

  Hydraulic brakes, Disc

  Tires, F / R

  20 x 7-8 / 22 x 10-10

  Fuel capacity

  2.25 gal

   N.W.

  608lbs

   G.W.

  758 lbs

  Max load

  800 lbs

  Dimension Information

  Wheelbase

  84.5 inches  (2.23m)

  OA L x W x H

  116.1x54.5x59.2 inches

  Height to seat,F

  17 inches

  Height to seat，R

  18.2 inches

  Distance between front and rear seat

  25.6 inches

  Min. ground clearance

  15.8 inches

  Pedal to center seat back

  41 to 46 inches
