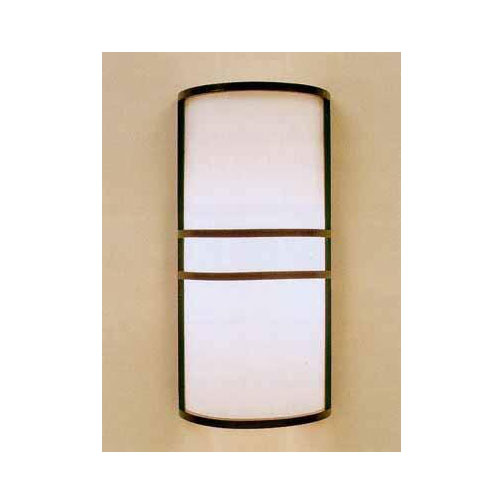

Evergreen Lights Lakeshore Indoor Walls

Product Number: LA-W-12-24W-AB-A

STANDARD  FEATURES

Product Numbers:

LA-10-6WLA-10-12WLA-12-12WLA-12-24WLA-16-12WLA-16-24W

Material

Paintlok Non Rustable Steel construction spot welded for high quality appearance in a half cylinder Shaped Design, standard powdercoat finish, white smooth acrylic half cylinder shaped lens, .125 thick, with open top and bottom. Option: Wet Location with top and bottom lens or solid metal top cap.

Insallation

Supplied with standard mounting hardware to mount to a 4” J-box or plaster ring

Optics

Evergreen Lighting Website for complete photometrics.

LED

Alta #AL-R-1W-30 LED array to be mounted onto an Aluminum MPCB Board configured to the proper wattage.The LED arrays will be centered within the Lens area and mounted on a decorative white aluminum reflective plate.

Driver

Specific Drivers will be matched with each different LED array configuration/ wattage. Standard Driver features are:• Constant Current• 3 or 5 year warranty• 120/277 multi-voltage power supplies• IP66, IP67
