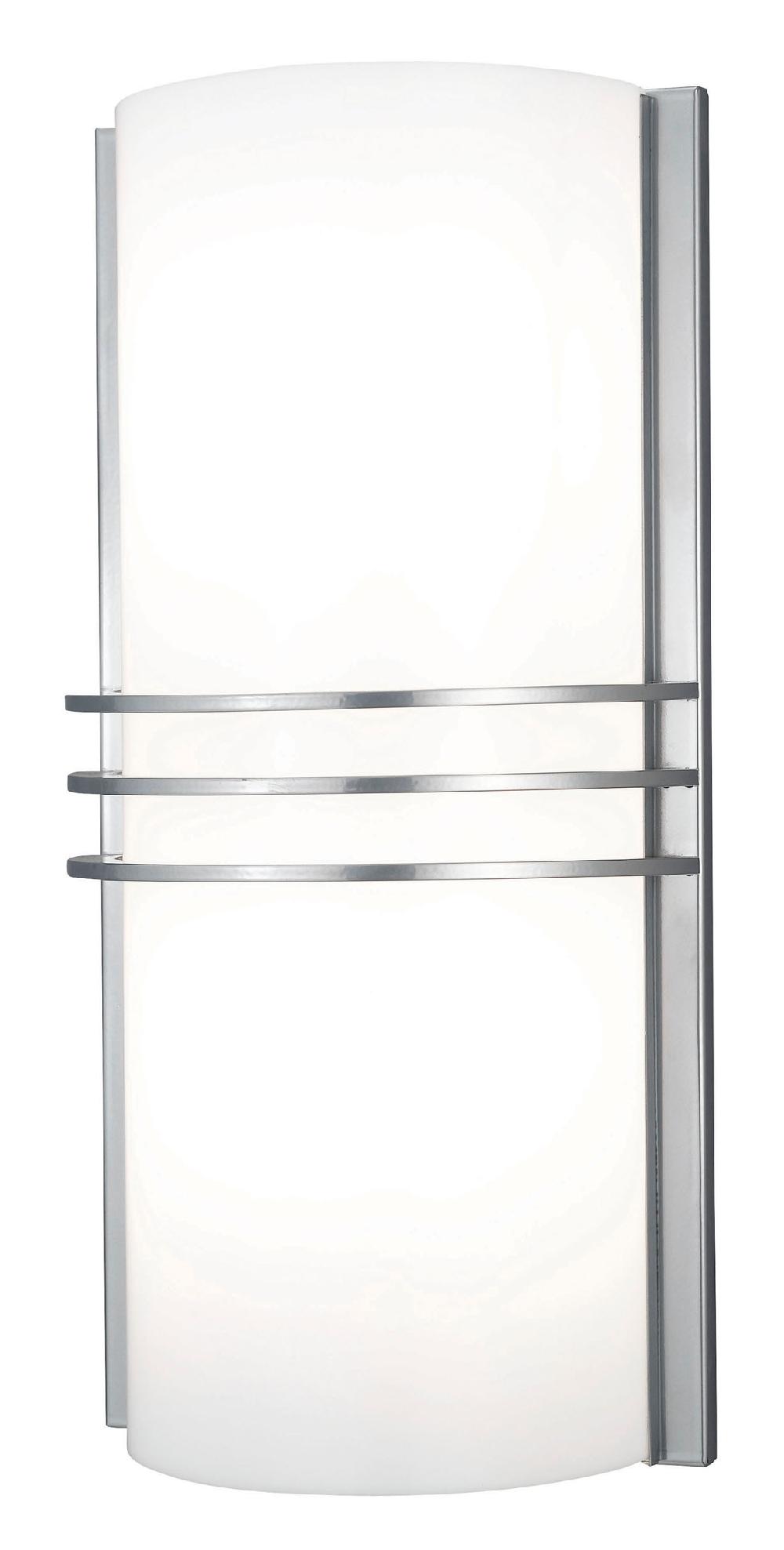

Evergreen Lights Glenridge Outdoor Wall Architectural

Product Number: GLE-W-24W-MN-WF

STANDARD  FEATURES

Product Numbers:

GLE-W-15-12W

GLE-W-15-18W

GLE-W-15-24W

GLE-W-19-12W

GLE-W-19-24W

GLE-W-19-30W

GLE-W-24-20W

GLE-W-24-40W

Material

Aluminum Square Bar construction slotted and milled for high quality appearance, standard powdercoat finish, P95 white frosted acrylic half cylinder lens, .125 thick, top and bottom lens..

Installation

Supplied with standard mounting hardware to mount to a 4” J-box or plaster ring

Optics

Evergreen Lighting Website for complete photometrics.

LED

Alta #AL-R-1W-30 LED array to be mounted onto an Aluminum MPCB Board configured to the proper wattage.The LED arrays will be centered within the Lens area and mounted on a decorative white aluminum reflective plate.

Driver

Specific Drivers will be matched with each different LED array configuration/ wattage. Standard Driver features are:• Constant Current• 3 or 5 year warranty• 120/277 multi-voltage power supplies• IP66, IP67
