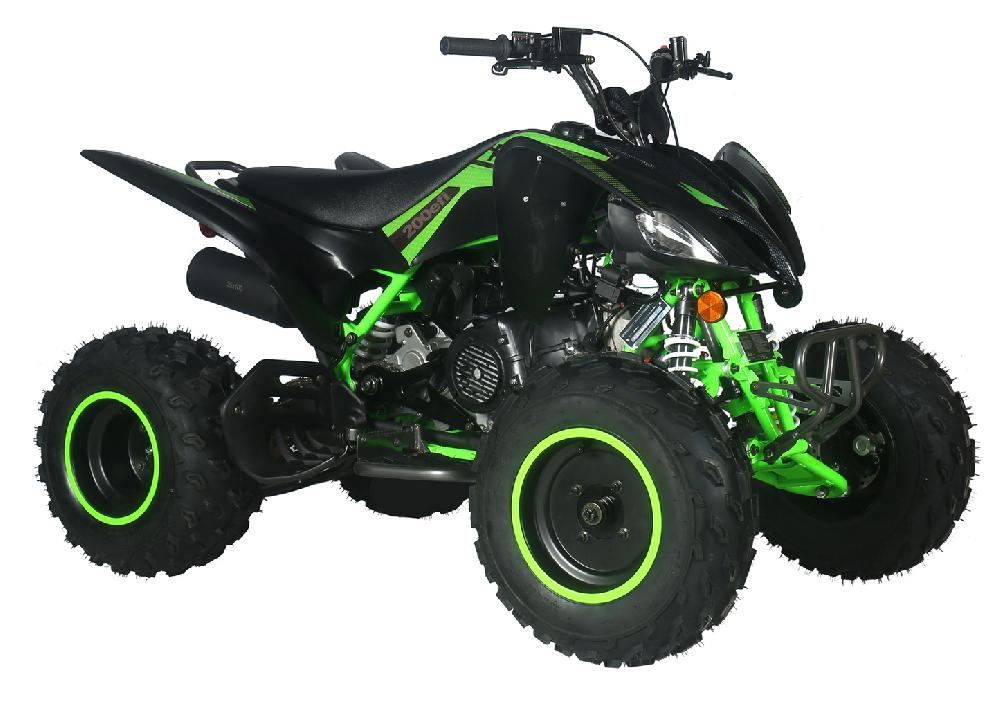

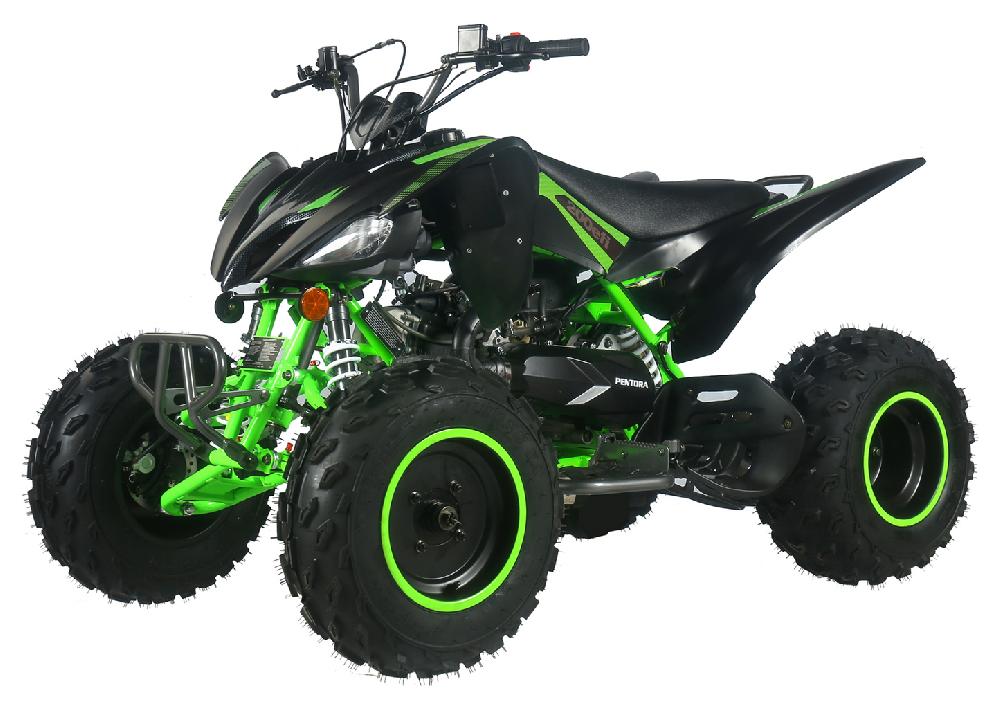

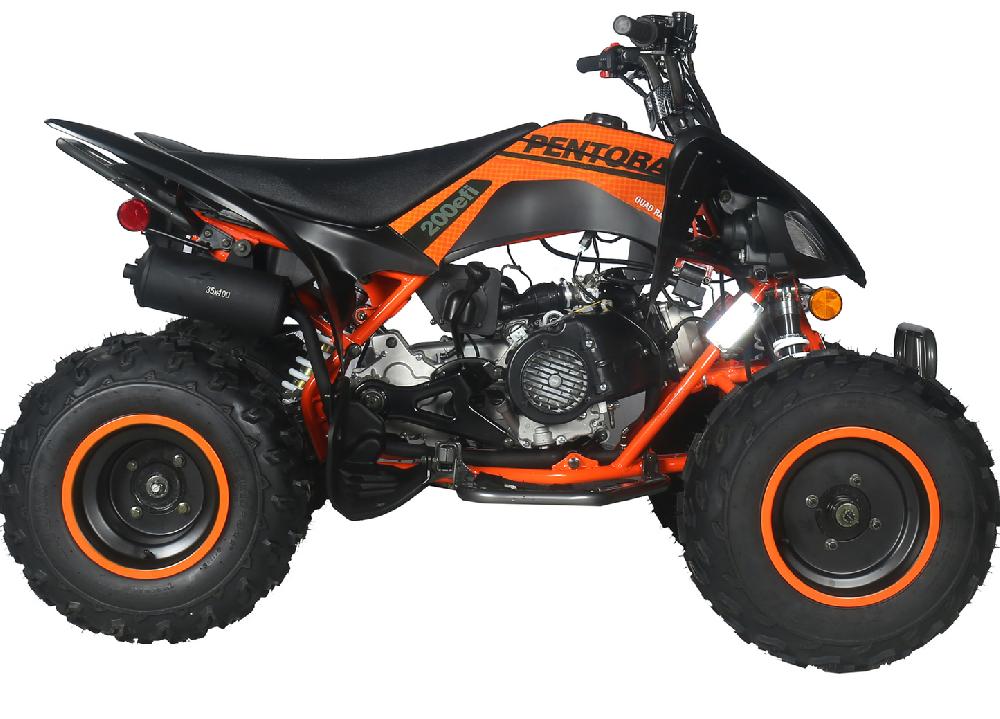

Scooter Plus PENTORA 200 EFI

ENGINE

Engine Make / Type

Air-Cooled SOHC 4-Stroke 176cc

Top Speed

35MPH

Lubrication Type

Pressure and Hybrid Splash Lubrication

Max Torque

10N·m/6000r/min

Compression Ratio

9.5:1

Valve Configuration

2 Valve

TRANSMISSION & DRIVE

Drive Type

Fully Automatic

Gears

CVT – F,N,R

Clutching Type

Automatic Centrifugal Dry

Drive line Type

Chain

Starting System

Electric Start

SUSPENSION

Front Suspension

Single A-Arm

Rear Suspension

Rear Single Shaft Swing Arm

BRAKES, TIRES & WHEELS

Front/Rear Brakes

Disc Brakes

Front Tire

20×7-10

Rear Tire

19×10-9

Front/Rear Tread

820mm / 810mm

MEASUREMENTS & DIMENSIONS

ATV Dimensions

 63'(L) x 41'(W) x 41'(H)

Ground Clearance

5.9in

Wheelbase

45in
