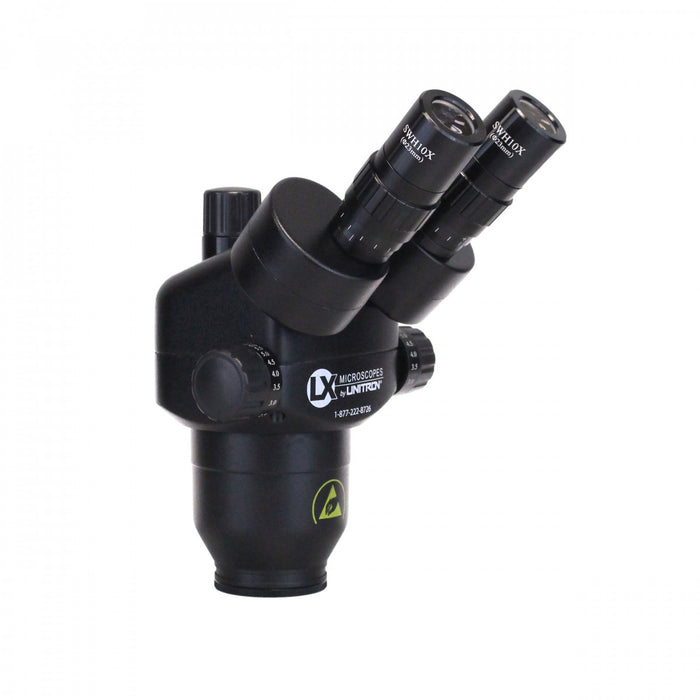

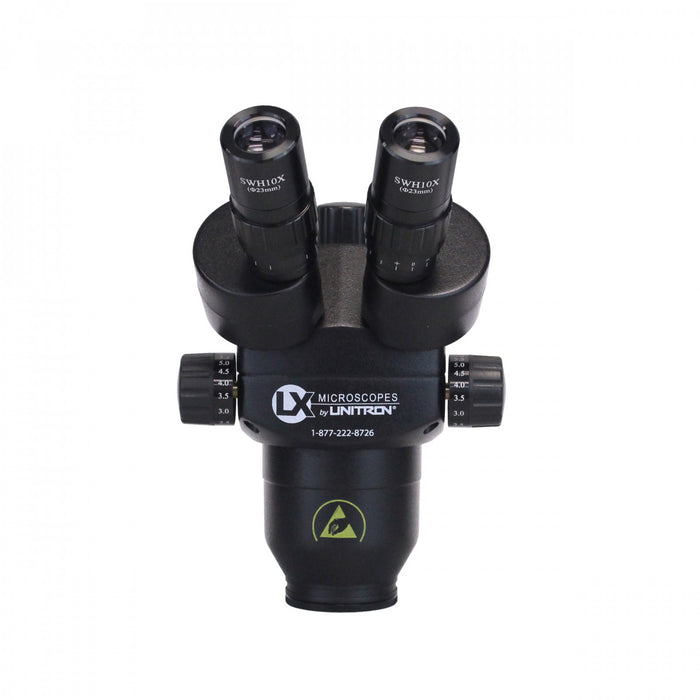

Luxo LX 23788-ESD System 373 1065 ESD-Safe Trinocular

The LX 23788-ESD, System 373 1065 ESD-Safe Trinocular by Unitron offers TRU Trinocular zoom stereo body, allowing for simultaneous viewing on a monitor and through the eyepieces. With an ESD-safe body featuring baked-on powder-coat and metal-laced paint, this product measures at 105 Ω/sq (static dissipative). Its achromatic lenses have anti-reflective coatings, and a magnification range of 1.0x – 6.5x (10x to 65x with included eyepieces). The zoom knobs have click-stops for repeatable magnification changes, with a working distance of 110mm (or 195mm with 0.5x reducing lens). Other features include a 45 degree incline, cast alloy aluminum body, and all metal gears. Suitable for focus mounts with 76mm diameter yoke, this product weighs at 9 lbs.

• TRU Trinocular zoom stereo body. Simultaneously view the sample on a monitor and through the eyepieces.
• ESD-safe Body features baked-on powder-coat with a metal-laced paint that measures 105 Ω/sq. (static dissipative)
• Achromatic lenses with anti-reflective coatings
• Magnification range 1.0x – 6.5x (10x to 65x when used with included 10x eyepieces)
• Click-stops on the zoom knobs ensure repeatable magnification changes
• Working distance 110mm (WD 195mm if used with a 0.5x reducing lens)
• Inclined 45 degrees
• Cast alloy aluminum body, all metal gears
• Fits focus mounts with 76mm diameter yoke
• Shipping weight is 9 lbs.
