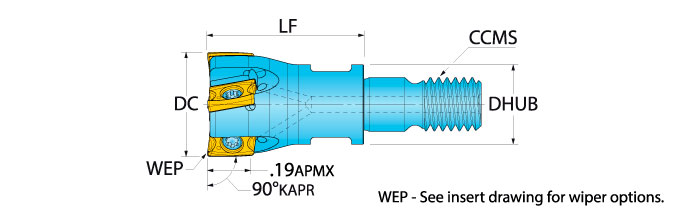

Ingersoll Series: 12J1A - 90° B-Draft & Hi-Feed

Product Series Features:

• Ø.500"
• TopOn Connection
• 5 mm Insert with 2 indexes
• 90°: .19" DOC, Hi-Feed: .02" DOC
• 32-63 Ra surface finishes when engaging the wiper (WEP)
• Insert corners: .008" .015" R & Hi-Feed
• Backdraft insert option to reduce vibration for long reach applications
• V-Bottom pocket fosters easy insert indexing & eliminates insert screw stress
