Geemarc Other Devices Light And Sound Signalling Amplicall Range AMPLICALL PSA200

FEATURES

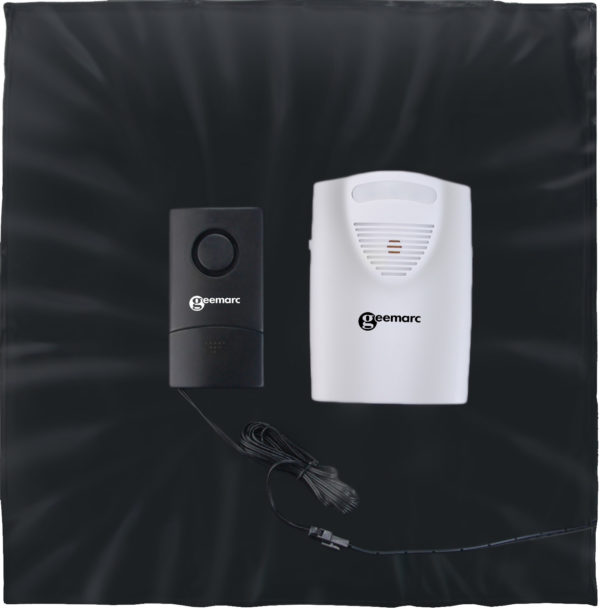

• The cushion equipped with sensors can detect when a person is no longer in a sitting position and activate an alarm

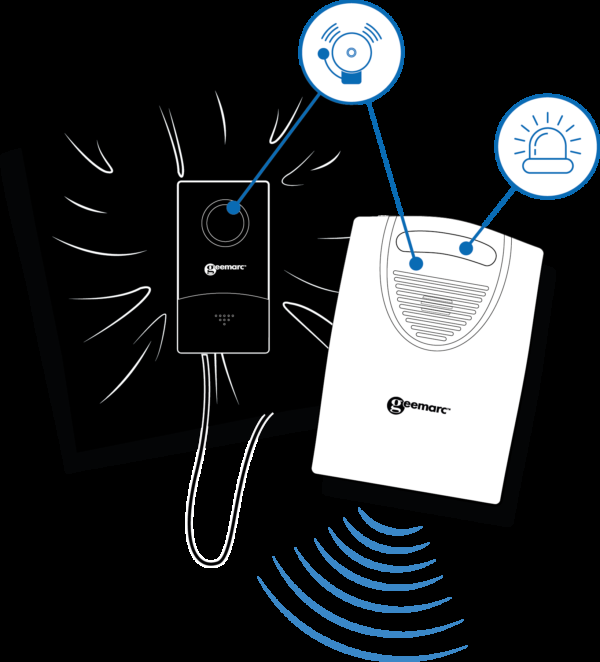

• The transmitter connected to the pressure sensor cushion rings so that it can be located more quickly
• The receiver rings and flashes, and has two types of alarm
• Both the transmitter and the receiver are compatible with the Amplicall Mat PSA 201, designed to be laid on a bed*

TECHNICAL SPECIFICATIONS

Receiver

• Adjustable ringer volume: 85dB (HI) or 70dB (LO)
• Visual ring indicator: flash
• Power switch with 3 positions:o ALARM: flashes and rings for 30 seconds every 10 secondso OFF: device is switched offo CHIME: flashes and rings for 5 seconds every 30 seconds
• Low battery alert signal
• Distance between receiver and transmitter: 30 meters maximum
• Size of the receiver: 89 x 126 mm
• Weight of the receiver: 122g
• 3 x 1.5V LR14 type batteries (not included)
• DC adaptor socket (6V DC/0.3A)

Transmitter

• Ringer volume: 75 dB
• Power switch with 3 positions:o ALERT: only the receiver gets activated when pressure is no longer applied on the mat. It rings and flashes according to the chosen setting (ALARM / CHIME / OFF)o OFF: device is switched offo ARM: the transmitter rings for 5 seconds every 40 seconds to make locating it easier. The receiver rings and flashes according to the chosen setting (ALARM / CHIME / OFF)
• Frequency: 433,92MHz
• Radio frequency power: < 1 mW
• Size of the transmitter: 120mm x 50mm
• Weight of the transmitter: 67g
• 1 x 9V PP3 type battery (not included)

Cushion

• The sensor cushion can be placed on all types of chairs.
• Size of the mat: 36 x 36 cm
• Weight of the mat: 106g
• Material: PVC plastic
