Geemarc Other Devices Light And Sound Signalling Amplicall Range AMPLICALL PSA100

FEATURES

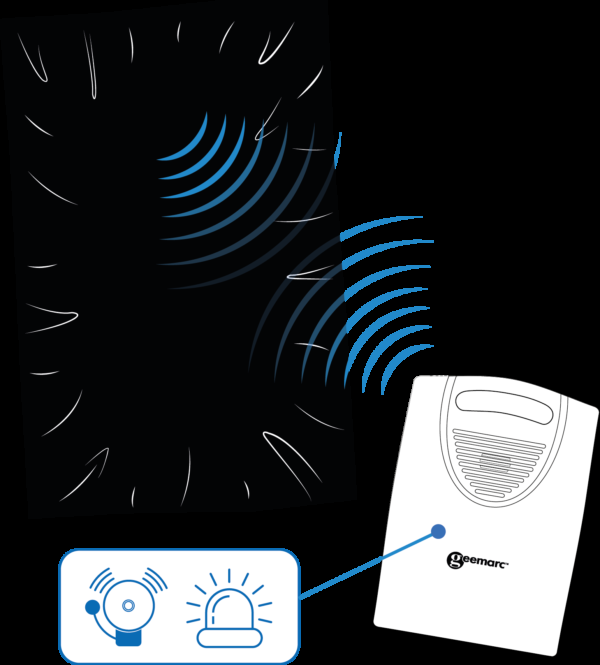

• When the mat, which is equipped with sensors and a signal transmitter, detects that pressure is being applied, it sends a signal to the receiver that then starts ringing and flashing.

TECHNICAL SPECIFICATIONS

Receiver

• Adjustable ringer volume: 85dB (HI) or 70dB (LO)
• Visual ring indicator: flash
• Power switch with 3 positions:o ALARM: flashes and rings for 30 seconds every 10 secondso OFF: device is switched offo CHIME: flashes and rings for 5 seconds every 30 seconds
• Low battery alert signal
• Distance between receiver and transmitter: maximum 30 meters
• Size of the receiver: 89 x 126 mm
• Weight of the receiver: 122g
• 3 x 1.5V LR14 type batteries (not included)
• DC adaptor socket (6V DC/0.3A)

Transmitter

• Frequency: 433,92MHz
• Radio frequency power: < 1 mW
• Size of the transmitter: 65 x 34 mm
• Weight of the transmitter: 13g
• 1 x CR2032 type battery (not included)
• Autonomy: about 10 months (assuming pressure is applied on it 30 times every day on average)

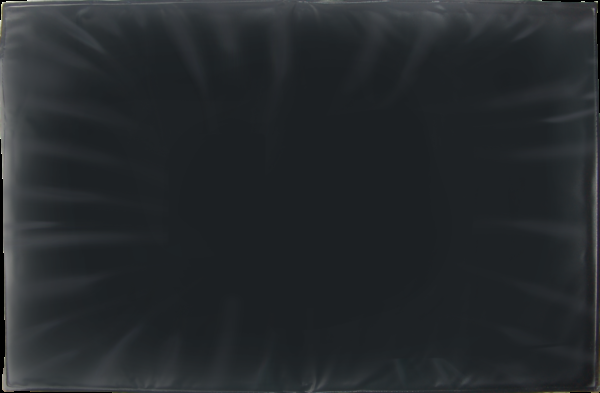

Mat

• Size of the mat: 36 x 56 cm
• Weight of the mat: 167g
• Material: PVC plastic
