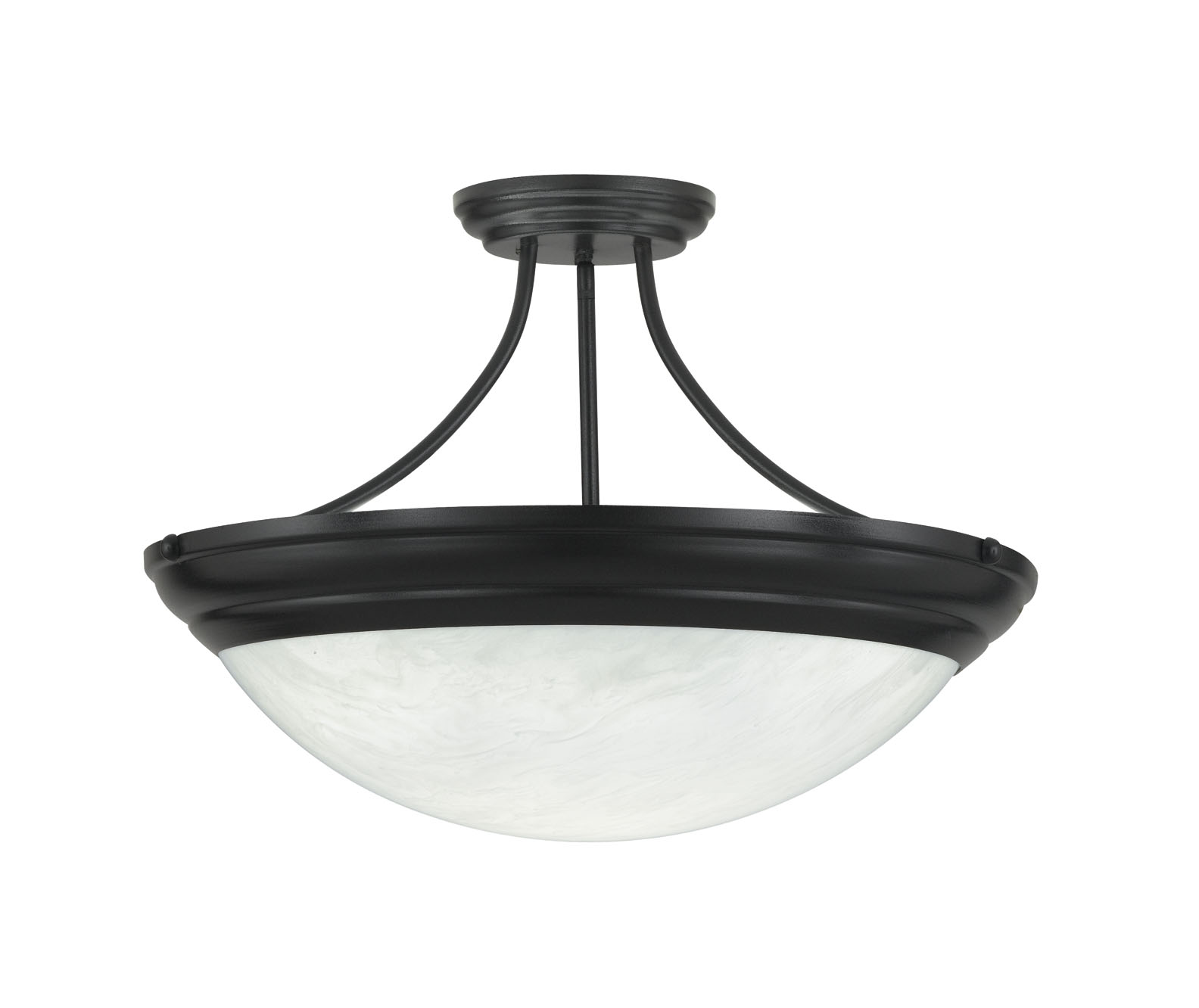

Evergreen Lights Fremont Semi Flush Indoor Ceiling/Pendant

SPECIFICATION FEATURES

Product Numbers:

FMT-S-16-12WFMT-S-16-18WFMT-S-16-27WFMT-S-23-24WFMT-S-23-36WFMT-S-23-54W

Material

Aluminum square solid bar construction with an aluminum spun canopy for standard powder coat finish or polished brass plated finish with P 95 frosted white acrylic bowl. Four rod design with a separate canopy assemblyfor 45 degree swivel mount(option).Maximum overall hang heightfor one piece stem assembly i5’ (O A). Lengths from 5’ to 25’must have a 5/8” deco connector that will be provided. Any lengths over 25’contact Factory.

Installation

Supplied with standard mounting hardware to mount to a 4” J-box or plaster ring

Optics

Contact Evergreen Lighting for complete photometrics.

LED

Alta #AL-R-1W-30 LED array to be mounted onto an Aluminum MPCB Board configured to the proper wattage.The LED arrays will be centered within the Lens area and decorative on a white aluminum reflective plate.

Driver

Specific Drivers will be matched with each different LED array configuration/ wattage. Standard Driver features are:

• Constant Current
• 3 or 5 year warranty
• 120/277 multi-voltage power supplies
• IP66, IP67
