Elara StarTech.com 1-port PCI Express RS232 Serial Adapter Card PCIe RS232 Serial Host Controller Card PCIe To Serial DB9 COM Port 16950 UART Low Profil

Overview

Range/Series Overview

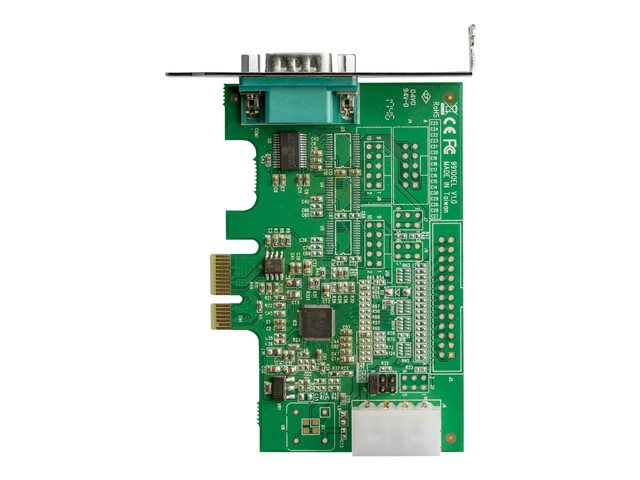

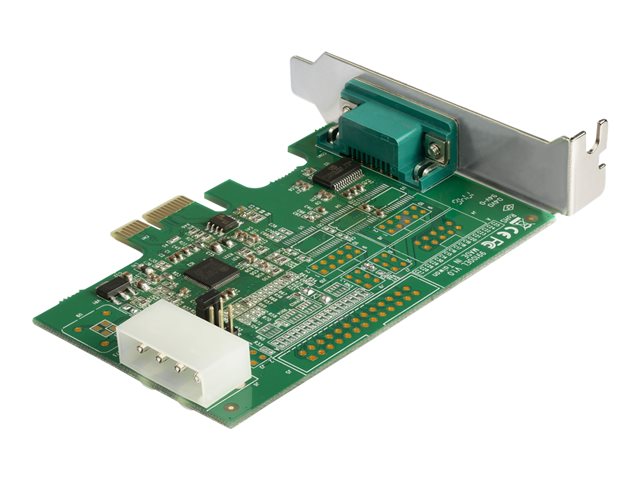

IMPORTANT: This Range/Series overview section describes the range of which this product belongs. Features of different versions might be mentioned and may not apply to the specific product on this page. Please view Specs for specification of product.This RS232 Serial Adapter Card lets you add an RS232 DB9 serial port to your computer through a PCI Express (PCIe) slot. It enables you to interact with serial devices such as card readers, printers, PIN pads, and modems, at speeds of up-to 921.4Kbps.

Features Summary

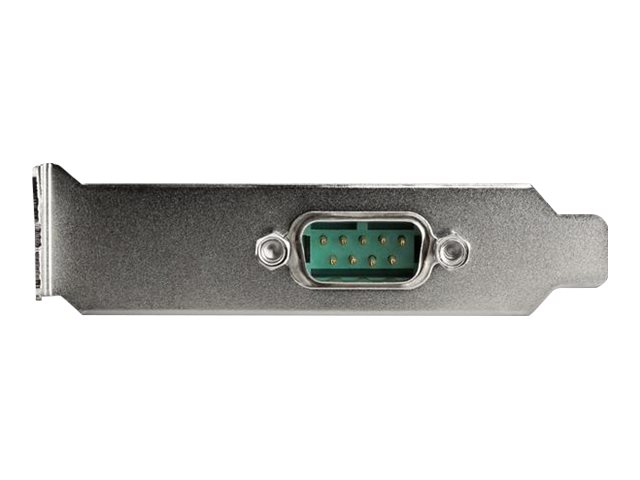

• Maximum CompatibilityWith broad OS support, including for Windows and Linux, this PCI Express card is easy to integrate into mixed environments. The card comes pre-configured with a low-profile bracket, and includes an optional full-profile bracket, so installation is easy regardless of the case form factor.
• Experience Optimal TechnologyThis PCIe to serial adapter supports the following features: • Compatible with industry standard 16950 UART • Supports max baud rate of up-to 921.4Kbps • Provides 5/12V power output on Pin 9 when external power is connected • 128-byte depth FIFO per transmitter and receiver • Supports 9, 8, 7, 6, 5 data bits • Asix AX99100 chipset • PCI Express 1.1 compliant PEX1S953LP is backed by a StarTech.com lifetime warranty and free lifetime technical support.
