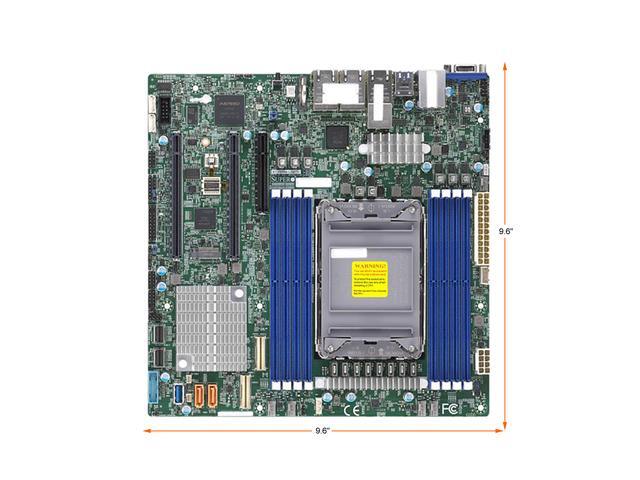

SUPERMICRO MBD-X12SPM-LN6TF Micro ATX Server Motherboard Socket P+ Intel C621A
Free worldwide shipping, tax free!
$94.00
$235.00
- SUPERMICRO MBD-X12SPM-LN6TF Micro ATX Server Motherboard Socket P+ Intel C621A
- SKU: EN-11168526240
- Category: Best Sellers
- Tag: Best Sellers
Main Features & Information
SUPERMICRO MBD-X12SPM-LN6TF Micro ATX Server Motherboard Socket P+ Intel C621A
- 3rd Gen Intel Xeon Scalable processors, Single Socket LGA-4189 (Socket P+) supported, CPU TDP supports Up to 270W TDP
- Intel C621A
- Up to 2TB 3DS ECC RDIMM, DDR4-3200MHz; Up to 2TB 3DS ECC LRDIMM, DDR4-3200MHz
- Up to 2TB Intel Optane Persistent Memory 200 Series, in 8 DIMM slots
- 1 PCI-E 4.0 x8, 2 PCI-E 4.0 x16, 4 PCI-E 4.0 NVMe x4 Internal Port(s)
- M.2 Interface: 1 SATA/PCI-E 3.0 x4
- M.2 Form Factor: 2280, 22110
- M.2 Key: M-Key
- Quad LAN with 1GbE with Intel I350-AM4
- Dual LAN with 10GBase-T with Intel X550
- Intel C621A controller for 10 SATA3 (6 Gbps) ports; RAID 0,1,5,10
- Supports 12V DC power input
- 4x NVMe port PCI-E 4.0 x4 via SlimSAS connector
- 5 USB 3.0 (2 rear, 1 Type-A, 2 via header), 6 USB 2.0 (2 rear, 4 via headers)
