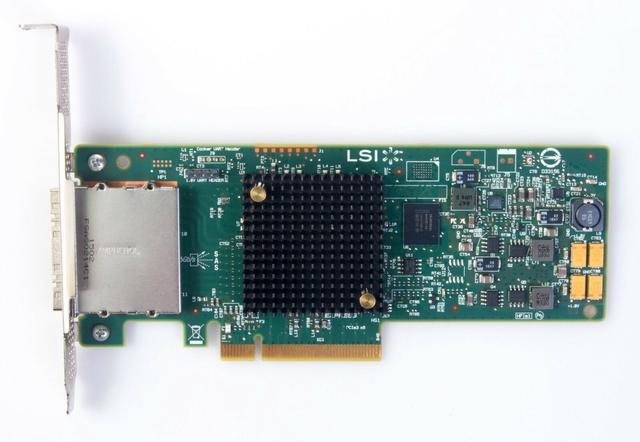

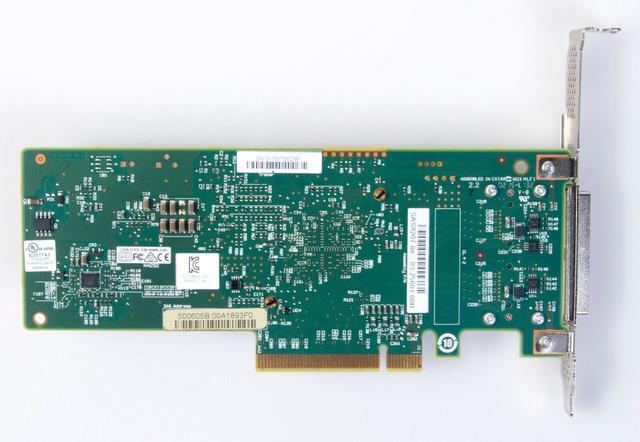

LSI LSI00300 (9207-8e) PCI-Express 3.0 X8 Low Profile SATA / SAS Host Controller Card Avago Technologies
LSI LSI00300 (9207-8e) PCI-Express 3.0 X8 Low Profile SATA / SAS Host Controller Card Avago Technologies
LSI LSI00300 (9207-8e) PCI-Express 3.0 X8 Low Profile SATA / SAS Host Controller Card Avago Technologies

LSI LSI00300 (9207-8e) PCI-Express 3.0 X8 Low Profile SATA / SAS Host Controller Card Avago Technologies

Free worldwide shipping, tax free!

$24.00 $57.00

Main Features & Information

LSI LSI00300 (9207-8e) PCI-Express 3.0 X8 Low Profile SATA / SAS Host Controller Card Avago Technologies
  • Host Bus Type: x8 lane PCI Express® 3.0
  • Devices Supported: 1024 Non-RAID devices
  • External Connectors: 2 Mini-SAS SFF8088
  • Fusion MPT Support: Fusion MPT™ 2.0
  • Operating Temperature: 0°C to 55°C
  • Operating Voltage (V): +12V +/-8%, 3.3V +/-8%
  • OS Support: Microsoft Windows®, Linux® (SuSE , Red Hat), Solaris®, VMware®, FreeBSD
  • PCI Power: 9.8W Typical, Airflow 200 LFM
  • Cable Support: Passive Copper, Active Copper
  • I/O Controller: LSI SAS2308
  • MTBF: > 2,000,000 hours
  • Operating Humidity: 5% to 90% Non-condensing
  • Data Transfer Rates: 6Gb/s SAS2.1 Compliant

You Might Also Like

Extreme Networks 16803 Extremeswitching Industrial Ethernet Switches Isw 4Gbp 2Gbt 2-Sfp - Switch - Managed - 4 X 10/100/1000 (Poe+) + 2 X Sfp + 2 X 10/100/1000 - Din Rail Mountable Wall-Mountable Extreme Networks 16803 Extremeswitching Industrial Ethernet Switches Isw 4Gbp 2Gbt 2-Sfp - Switch - Managed - 4 X 10/100/1000 (Poe+) + 2 X Sfp + 2 X 10/100/1000 - Din Rail Mountable Wall-Mountable
$222.00 $98.00 Save 55%

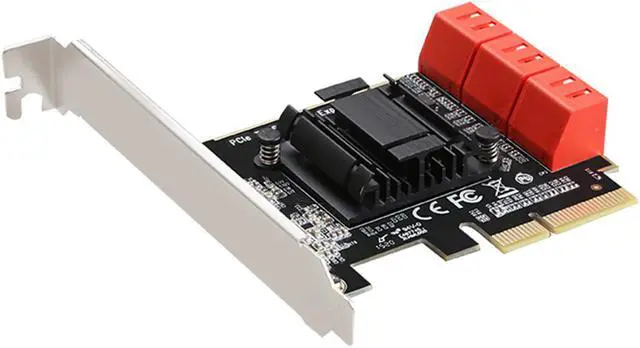

PCIe SATA iii Card RIITOP 6 Port SATA 3.0 PCI-e Expansion Card Adapter Converter ASM1166 Chipset Support SATA 6G AHCI SPAN (Only support PCIe x4 or above) PCIe SATA iii Card RIITOP 6 Port SATA 3.0 PCI-e Expansion Card Adapter Converter ASM1166 Chipset Support SATA 6G AHCI SPAN (Only support PCIe x4 or above)
$71.00 $32.00 Save 54%

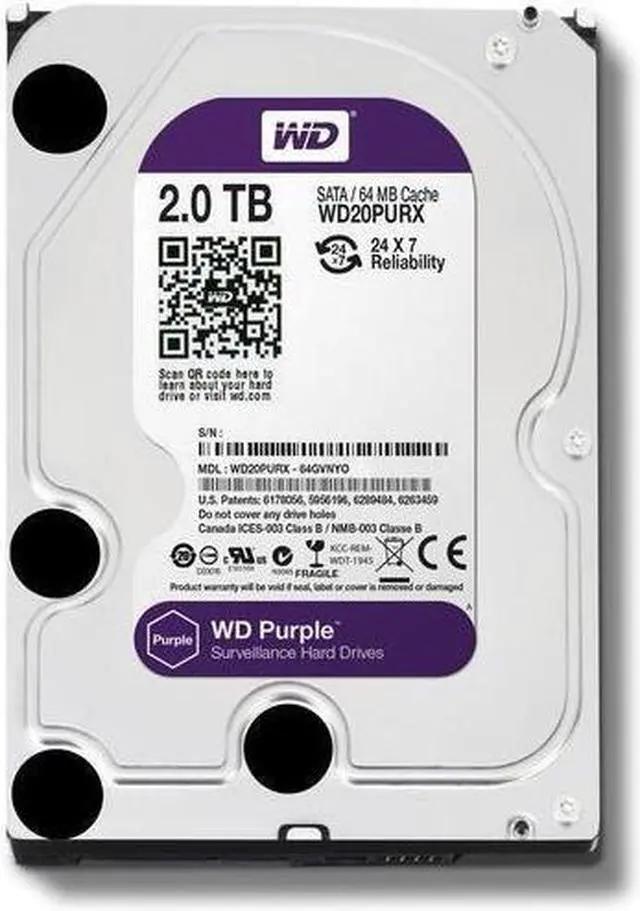

WD Purple 2TB Surveillance Hard Disk Drive - 5400 RPM Class SATA 6 Gb/s 64MB Cache 3.5 Inch - WD20PURX [Old Version] WD Purple 2TB Surveillance Hard Disk Drive - 5400 RPM Class SATA 6 Gb/s 64MB Cache 3.5 Inch - WD20PURX [Old Version]
